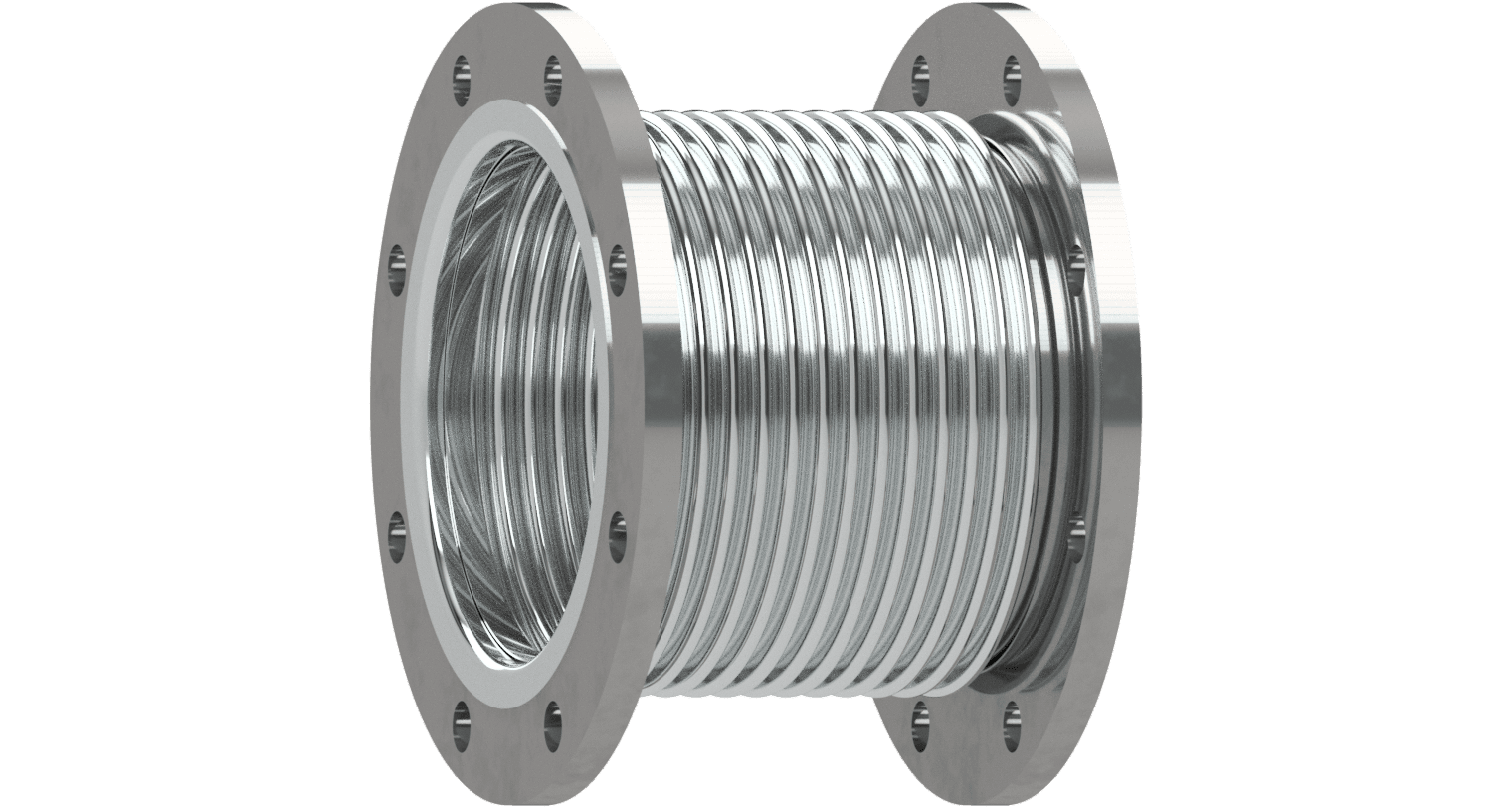

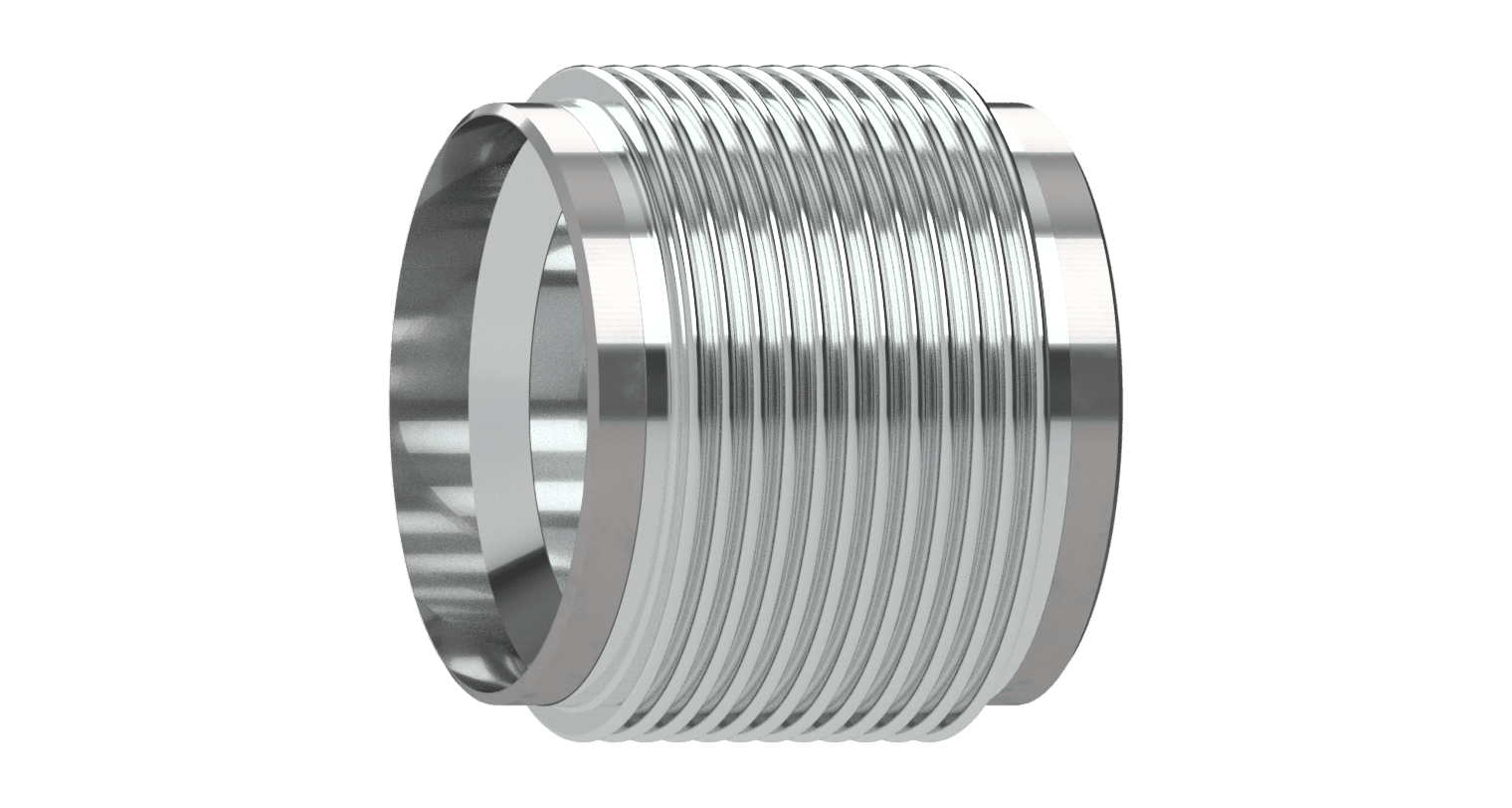

Low Pressure Exhaust Bellows
Engineered for low pressure and exhaust systems requiring axial movement and vibration absorption.
• Nominal Sizes:3"–48" NPS
• Pressure:Full vacuum to 25 PSIG
• Temperature:Up to 1,250°F
• Movement:Axial, Lateral, Vibration
• Design Features:Laminated, single-ply; rectangular options available
Common Applications
Engine exhaust systems
Maritime vessels
Generator exhaust
Ducting and stack systems
Hyspan Precision Products™ Catalog
DownloadCustom Engineered Solutions
Sizes from ¼" to 32 ft diameter
Rectangular, mitered, and camera-fold convolutions
Racetrack exhaust stack designs
High-temperature alloy constructions
Example Projects
Racetrack exhaust bellows for naval vessel
Double-miter rectangular expansion joint
Classified defense exhaust application
